BMW LCD Data Display (26 Live Channels · Knock Monitor)

Part number: ST-LCD-01

26 live channels on one display. The knock monitor shows what the engine is actually doing: bad fuel, a mismatched calibration or low-speed pre-ignition all show up straight away, so you can react before the engine is damaged. Built for BMW S58 / B58 / S63.

Price on request ≈ CNY 3,800

RMB 3800 · 国内零售价 / domestic retail price

  • MOQ1 pc
  • Lead time7 days
  • PackageNone mm

Key features

  • 26 live channels on one screen
  • Knock monitor with per-cylinder ignition
  • Boost, AFR, fuel trims, temperatures, fuel-rail pressure, torque
  • Carbon-fibre textured housing to match the cabin
  • BMW-specific (S58 / B58 / S63), reads the car's own data

Specifications

Data channels26 live channels
Channels shownBoost · MAP · AP · Throttle · Pedal · EWG · Load · STFT · LTFT · AFR · IGN · EXC · ITC · Knock · Water · Oil · IAT · Transmission · Exhaust · Fuel rail · Torque
Knock monitorKnock count + per-cylinder ignition
ScreenColour LCD, hexagonal bezel
HousingCarbon-fibre texture, black
Engine codesBMW S58 / B58 / S63
MountingDash mount, loom routed out of sight
PriceRMB 3800 (domestic retail)

Material: 碳纤维纹理外壳 / Carbon-fibre texture · Finish: 黑色 / Black

Overview

A SpeedTune BMW-specific data display that puts 26 channels on one screen, reading the car's own data — no extra sensor farm.

The headline feature is the Knock monitor. Knock is one of the fastest ways to hurt a boosted engine: poor fuel, the wrong octane, a mismatched calibration or low-speed pre-ignition (LSPI) all show up in the knock count and ignition corrections. With the display in front of you, you can lift off, change fuel or go back and re-calibrate immediately — instead of finding out after the damage is done.

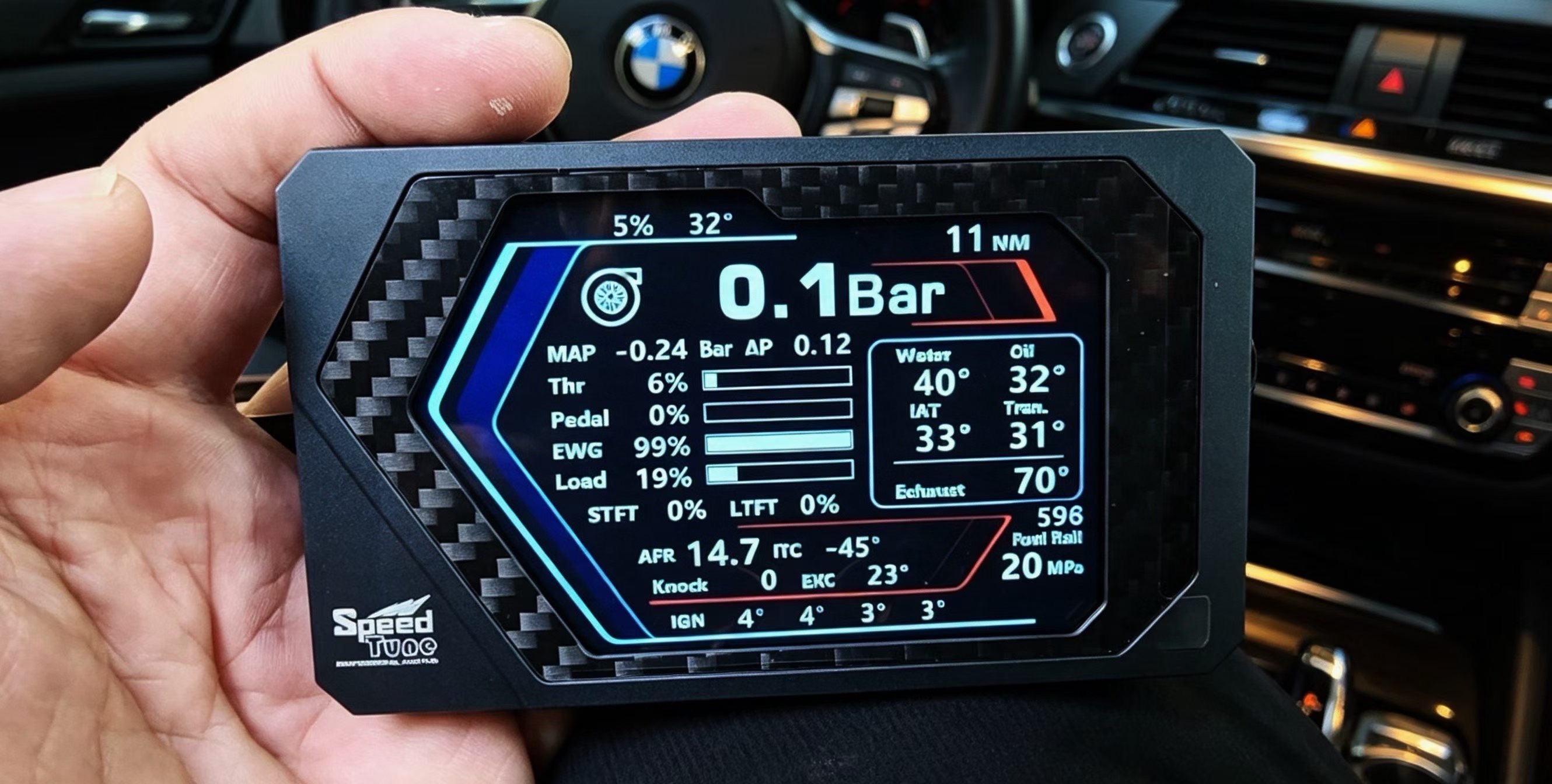

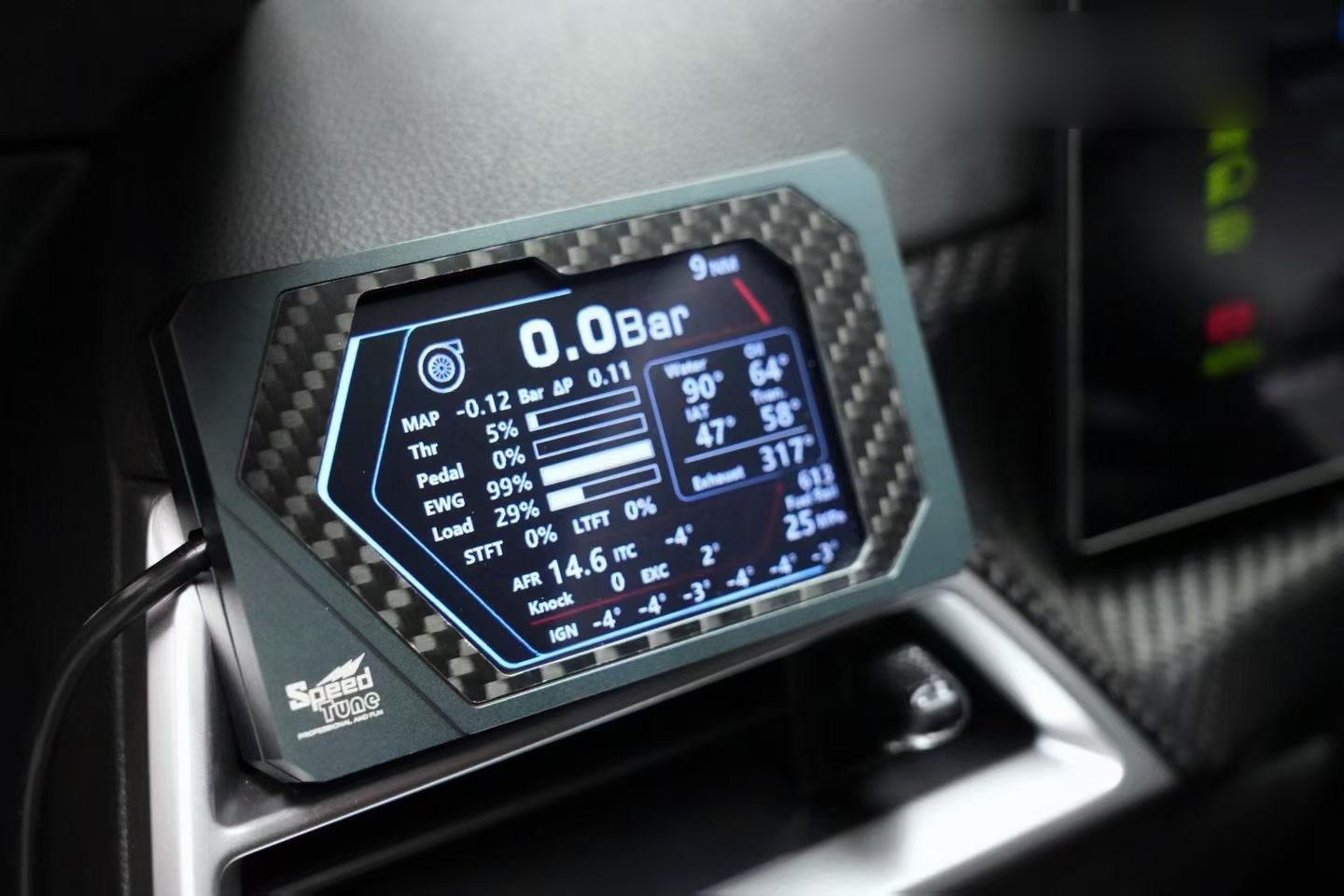

What you can watch on one screen (as shown in the product photos):

· Boost, manifold pressure (Boost / MAP / AP)

· Throttle, pedal, EWG, engine load

· Air-fuel ratio (AFR) with short- and long-term fuel trims (STFT / LTFT)

· Per-cylinder ignition angle and corrections (IGN / EXC / ITC)

· Knock count

· Water, oil, intake-air, transmission and exhaust temperatures

· Fuel-rail pressure and torque output

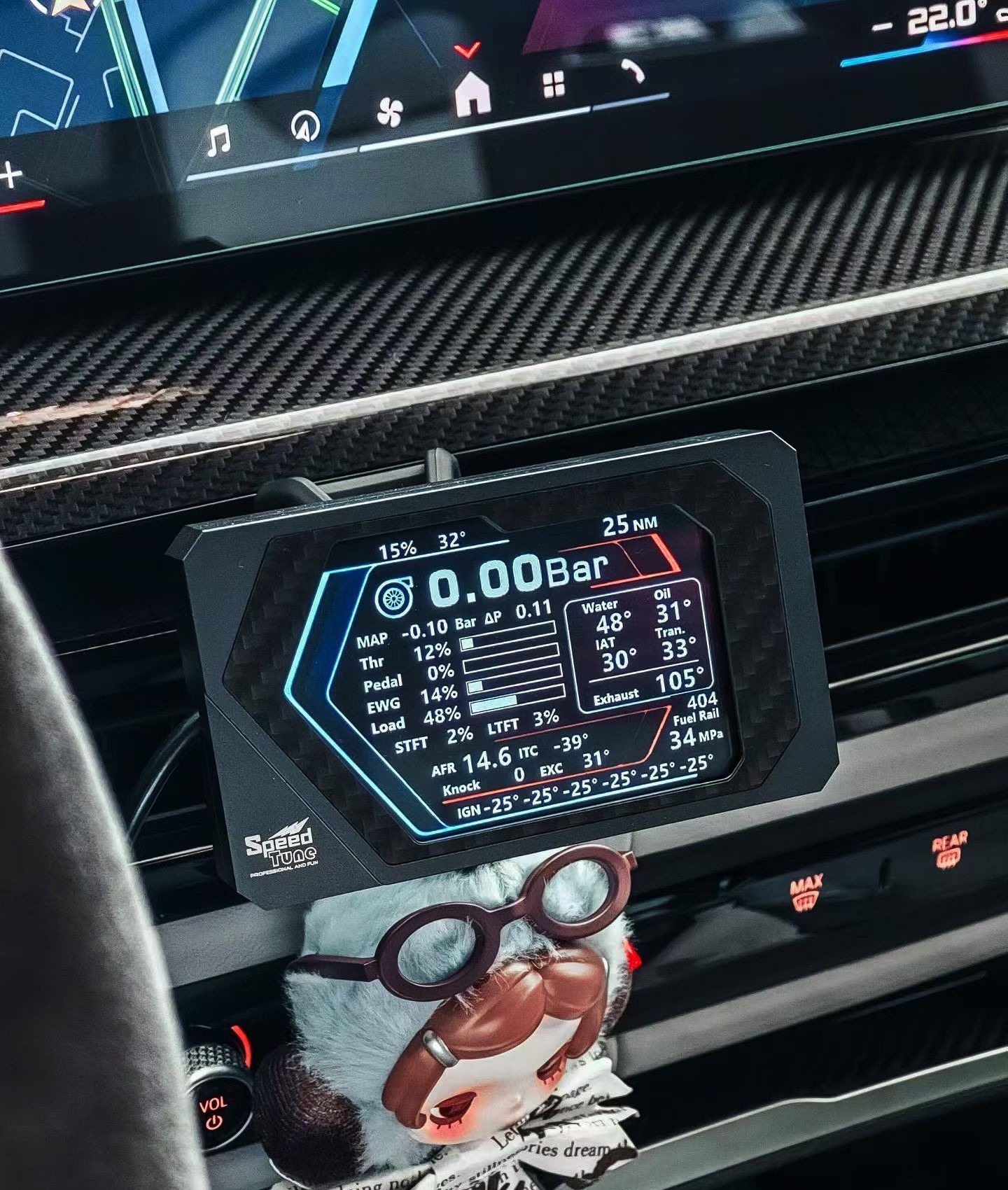

Carbon-fibre textured housing matches the cabin; dash-mounted, with the loom routed out of sight so it stays clear of your view.

What's in the box

  • None

Vehicle fitment

MakeModelChassisYears EngineTrimNotes
BMW G FAll 12 V CAN or analogue vehicles— ——Sensor pack vehicle-specific

Not sure about fitment? Send us your VIN or license plate and we will confirm.

Frequently asked questions

Which vehicles does it fit?

Fits BMW S58,B58,S63 vehicles — see the fitment table above for exact models and years. If you are not sure, send us your VIN and we will confirm before you order.

Is it in stock? How long is the lead time?

In stock, ready to ship. Typical lead time about 7 days. We confirm the exact date when you order.

What is it made of?

碳纤维纹理外壳 / Carbon-fibre texture · 黑色 / Black. Details are in the specification table above.

What is the minimum order quantity?

Minimum order quantity is 1 pcs. Ask us for wholesale pricing on larger quantities.

What is included in the box?

None

Package weight and dimensions?

None mm.

Do I need a workshop to install it?

Professional installation is recommended. If you have any question about fitting, message us on WhatsApp or by email and we will help.

How do I order, and how much is shipping?

Use the inquiry form on this page, or email / WhatsApp us. We reply with unit price, lead time and the shipping cost to your country.

Get a quote — ST-LCD-01

Tell us your vehicle and destination, we reply within one business day.
